Horsepower: 450 - 900 Displacement: 2.0L - 4.5L
- GEN II AERODYNAMICS FEATURE INCREASED HORSEPOWER RANGE
- 66mm TURBOCHARGER COMPRESSOR OPTION
- NEW FULLY-MACHINED SPEED SENSOR PORT
- STANDARD AND REVERSE ROTATION OPTIONS AVAILABLE
- DUAL CERAMIC BALL BEARING
- WATER COOLED CENTER HOUSING
GTX Gen II compressor wheels were designed using proprietary Honeywell computer simulation technology focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger. Each GTX Gen II turbocharger has the ability to create more air mass flow, offering enthusiasts a wider range of power output when tuning the vehicle. The 8mm dual ceramic ball bearing cartridge provides optimal turbo response and reliability through its reduction in shaft motion.

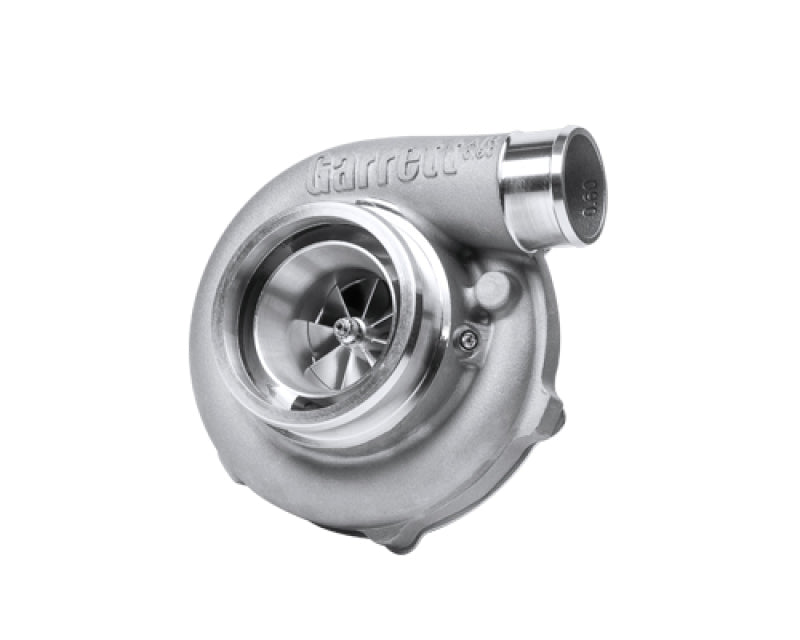

The Gen II GTX Series Turbochargers feature a fully-machined compressor inlet, fully-machined compressor outlet, and fully-machined ported shroud.
We also added a brand new compressor housing featuring a high-flowing design matched perfectly for the new compressor wheel upgrade. Gen II compressor housings are not interchangeable with Gen I compressor wheels; however, all Gen II turbochargers are outline interchangeable with the equivalent GT and GTX Gen I products making a turbo swap easy to perform using all existing piping.
The new compressor housings are equipped with a fully machined speed sensor port that accepts the Honeywell Garrett speed sensor (Sold separately). This feature allows tuners to understand existing operating conditions, which is important when fine tuning a turbocharger to its most efficient operating conditions. The speed sensor port comes plugged from the factory and can be removed using a 5mm allen key when ready to install a speed sensor kit.
All Gen II GTX series turbochargers are compatible with existing GT and GTX turbine housings kits. Gen II turbochargers are only offered through Honeywell Garrett authorized distribution centers.
Available in four sizes: the GTX3071R, GTX3076R, GTX3576R, and GTX3582R Reverse Rotation turbochargers are ideal for twin turbo, V engine applications and for fabricators that want perfect symmetry to be displayed in the engine compartment. The Reverse Rotation turbos can also be used in single turbo applications where packaging is an issue. The compressor wheel spins in a counter-clockwise rotation while the compressor outlet exits air to the left, making its components non-interchangeable with Gen 1 or Gen II standard rotation products.
Featuring the new GTX Series Gen II compressor wheel designed using proprietary Honeywell computer simulation technology. Reverse Rotation turbochargers should be paired with a Gen II Standard Rotation counterpart and are not recommended to be matched with a Gen I turbocharger because the higher horsepower rating could lead to engine or other mechanical failure.
Forged, fully machined compressor wheel
Displacement range: 2.0L to 4.5L
-Dual Ball Bearing
-Oil and water-cooled bearing housing
-M14x1.5 water ports
-Anti surge 0.70 A/R ported shroud compressor housing 4" inlet 2.5" outlet
-64-trim billet compressor wheel 2.46/3.36, 66mm inducer
-Available as a super core (no turbine housing)
-Also Available with T31, GT, and v-band T3, and v-band T4 turbine housings in 0.63 A/R and 0.82 A/R and 1.06 A/R
-68.0mm 84-trim GT35 turbine wheel
