Horsepower: 475 - 770 Displacement: 2.0L - 3.5L

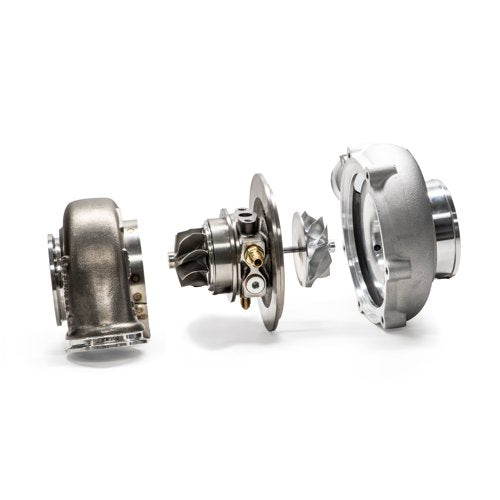

This is a Super Core which means it consist of the center section, turbine wheel, compressor housing and billet compressor wheel. Make sure to add in addition to the super core which size exhaust housing you would like to use. You will need both to make a complete turbo.
Features
- G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
- 58mm TURBOCHARGER COMPRESSOR WHEEL
- 76% MAXIMUM COMPRESSOR EFFICIENCY
- MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
- NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
- STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
- OIL RESTRICTOR AND WATER FITTINGS INCLUDED
- FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
- TURBOCHARGER ASSEMBLIES ARE CALIBRATED WITH A 0.5 BAR ACTUATOR
| G30-770 Reference Data | Compressor | Turbine | ||||||
|---|---|---|---|---|---|---|---|---|
| Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | ||
| HP: 475-770 | Disp: 2.0L-3.5L | 58mm | 71mm | 65 | 0.72 | 60mm | 55mm | 84 |
| G30-770 Turbocharger PN | ||||||
|---|---|---|---|---|---|---|
| Turbo PN | A/R | Inlet | Outlet | Wastegate | Divided | |
| Turbo PN assembled and calibrated with 1.0 bar actuator | 880704-5005S | 0.83 | V-band | V-band | Y | N |
| 880704-5006S | 1.01 | V-band | V-band | Y | N |

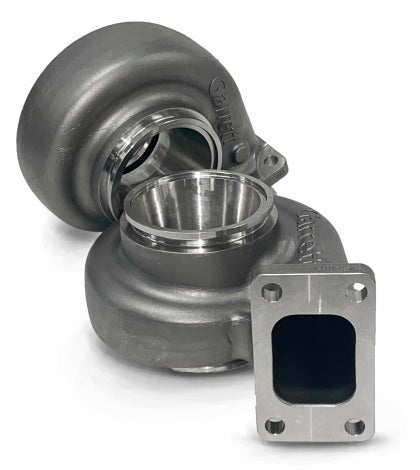

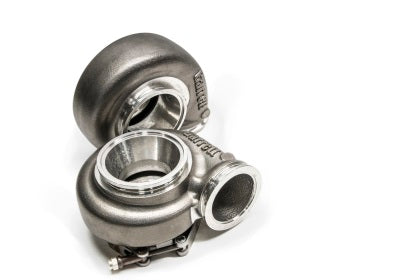

| G30-770 Standard Rotation Supercore PN | Turbine Kit PN | A/R | Inlet | Outlet | Wastegate | Divided | |
|---|---|---|---|---|---|---|---|
| 880693-5002S | 740902-0090 | 0.83 | T3 | V-Band | Free Float | N | |
| 740902-0091 | 1.01 | T3 | V-band | Free Float | N | ||
| 740902-0086 | 0.61 | V-Band | V-band | Free Float | N | ||
| 740902-0087 | 0.83 | V-Band | V-band | Free Float | N | ||
| 740902-0088 | 1.01 | V-Band | V-band | Free Float | N | ||
| 740902-0089 | 1.21 | V-Band | V-band | Free Float | N | ||
